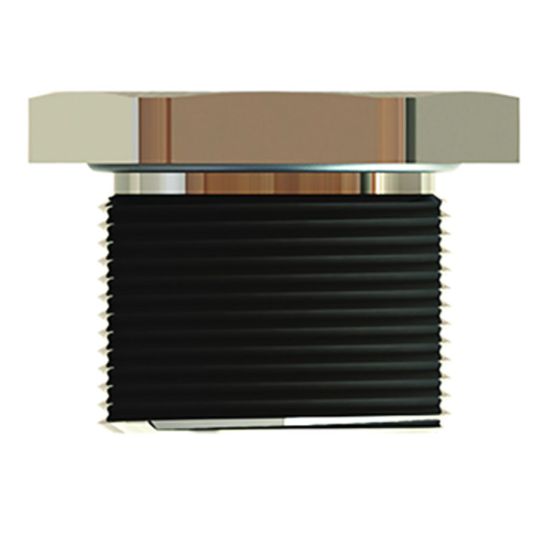

Alco Hazardous Area Brass Reducer Nickel Plated M25 Male to M20 Female 19mm OAL
Loading...
Description
Hazardous Area Brass Reducer, Gland Size M25 Male to M20 Female, 15 mm x 19 mm Thread Length, Hazardous Area Rating: Ex d IIC Gb, Ex e IIC Gb, Ex t IIC Db, IP 66/68, 30 mm Width Across Flats, 33 mm Width Across Corners, 6 N/m, IP66/68, Neoprene Seal, Brass Body, Nickel Plated, -40 to 100 deg C, 19 mm Overall Length
Key Specifications
| Barcode (EAN-13) |
9328587022521
|
|---|---|
| SKU |
ALCBIMBRBM25M20
|
| Brand |
Alco
|
| Product Type |
Hazardous Area Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCBIMBRBM25M20 |
| Cable Gland Size | M25 Male to M20 Female |
| Finish | Nickel Plated |
| Hazardous Area Rating | Ex d IIC Gb/Ex e IIC Gb/Ex t IIC Db/IP 66/68 |
| IP Rating | IP66/68 |
| Overall Length | 19 mm |
| Thread Length | 15 mm x 19 mm |
| Temperature | -40 to 100 deg C |
| Torque Rating | 6 Nm |
| Width Across Corners | 33 mm |
| Width Across Flats | 30 mm |
