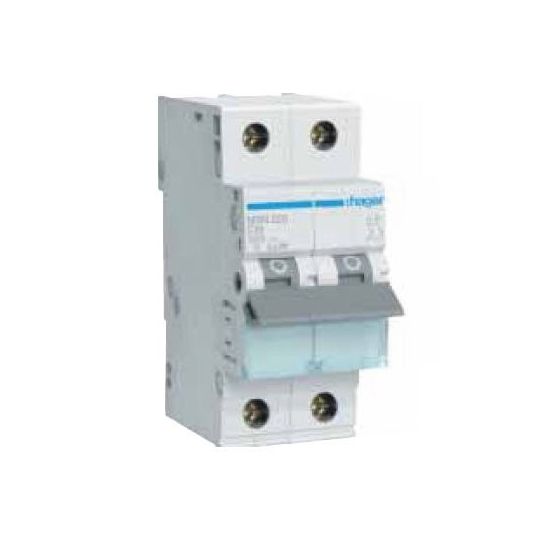

Hager Miniature Circuit Breaker C Curve 63Amp 6 kA 2Pole 2Module 36mm DIN Rail Mount
Loading...
Description
Miniature Circuit Breaker C Curve, 415 Volt, 63 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 2 Module 36 mm, 2 Pole, 2.8 Nm Tightening Torque, Screw Terminal, 4000 Cycles Electrical Life, IP20, DIN Rail Mounting, 25 to 70 deg C, 83 mm Height, 35 mm Width, 70 mm Depth
Key Specifications
| Barcode (EAN-13) |
3250613810160
|
|---|---|
| SKU |
HAGMSN263
|
| Brand |
Hager
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MSN263 |
| Current | 63 Amp |
| Depth | 70 mm |
| Electrical Life | 4000 Cycles |
| Frequency | 50/60 Hz |
| Height | 83 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20 |
| Modules | 2 Module 36 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Temperature | 25 to 70 deg C |
| Terminal Type | Screw |
| Tightening Torque | 2.8 Nm |
| Voltage | 415 Volt |
| Width | 35 mm |
